Data Model

Both DPGs use PostgreSQL as their system of record (via Drizzle ORM) and Redis for caching, sessions and queues. Each DPG owns its own database; they do not share tables.

Signals data model

Section titled “Signals data model”

The Signals database is organised around the item/action/event primitives:

EntityWhat it holds
ItemsVersioned, schema-typed records keyed by item_type (e.g. profile_1.0). Item tables are partitioned so that high-volume reads can prune to relevant partitions.
Schema registryThe schemas that define networks and item types. Schemas are fetched and cached at the inter-instance read layer.
Actions & eventsInteractions between items and their structured results.
OrganisationsCarries a type column (network_service | aggregator | voice) that gates what each org may do (for example, only network_service orgs may upsert aggregators).

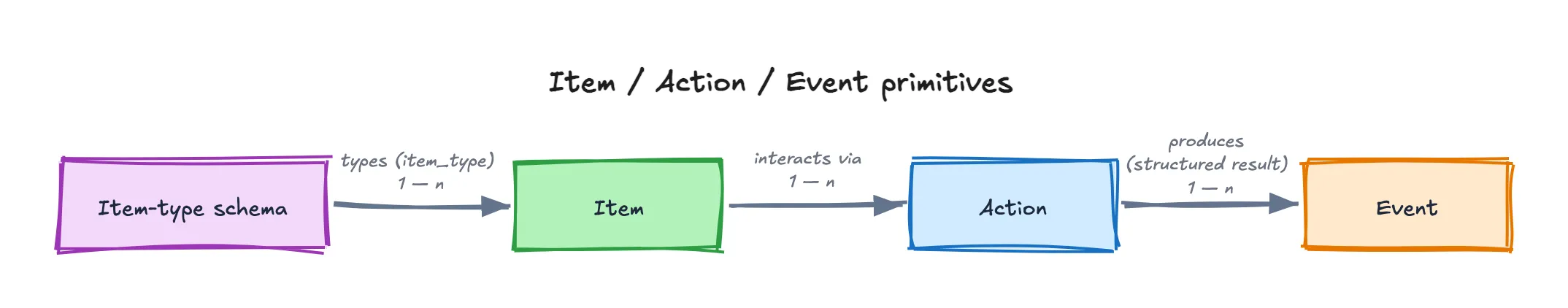

How the item/action/event primitives relate:

An item-type schema types many items (1—n); items interact via actions (1—n); each action produces events as structured results (1—n)

Always query through the partition-aware helpers in @dpg/database; a query against the parent table without a partition key scans all partitions.

Schema files live in apps/api/db/postgres/schema/. Migrations are generated, never hand-edited — regenerate with pnpm db:generate:api. A bundled schema.sql is produced and verified with pnpm schema:bundle / pnpm schema:bundle:check.

Aggregator data model

Section titled “Aggregator data model”

The Aggregator database (Drizzle, owned by apps/api) holds:

EntityWhat it holds
AggregatorsRegistration state, approval status, profile data.
ParticipantsOnboarded individuals/enterprises destined to become Signals items.
Bulk jobsUpload batches and per-row processing state for the worker.
Registration links & metricsShareable links and their roll-ups.

db-schema is the single source of truth; apps import table definitions from it. Migrations are generated with pnpm --filter @aggregator-dpg/api db:generate and applied with db:migrate.

Design principles

Section titled “Design principles”
  • Schema-typed, never freeform. An item’s structure is governed by its item_type schema; clients cannot invent fields.
  • Backend-owned identity fields. item_instance_url and item_schema_url are generated server-side.
  • Configuration as code. No domain/env-specific value is hardcoded — values load once at startup from config loaders or env. Per-env overrides live in config/env/{dev,staging,prod}.yaml.
