High-Level Architecture

The Blue Dots stack is organised into clear horizontal layers, with two parallel verticals — Aggregator and Signals — that share datastores and integrations.

The layered view

Section titled “The layered view”

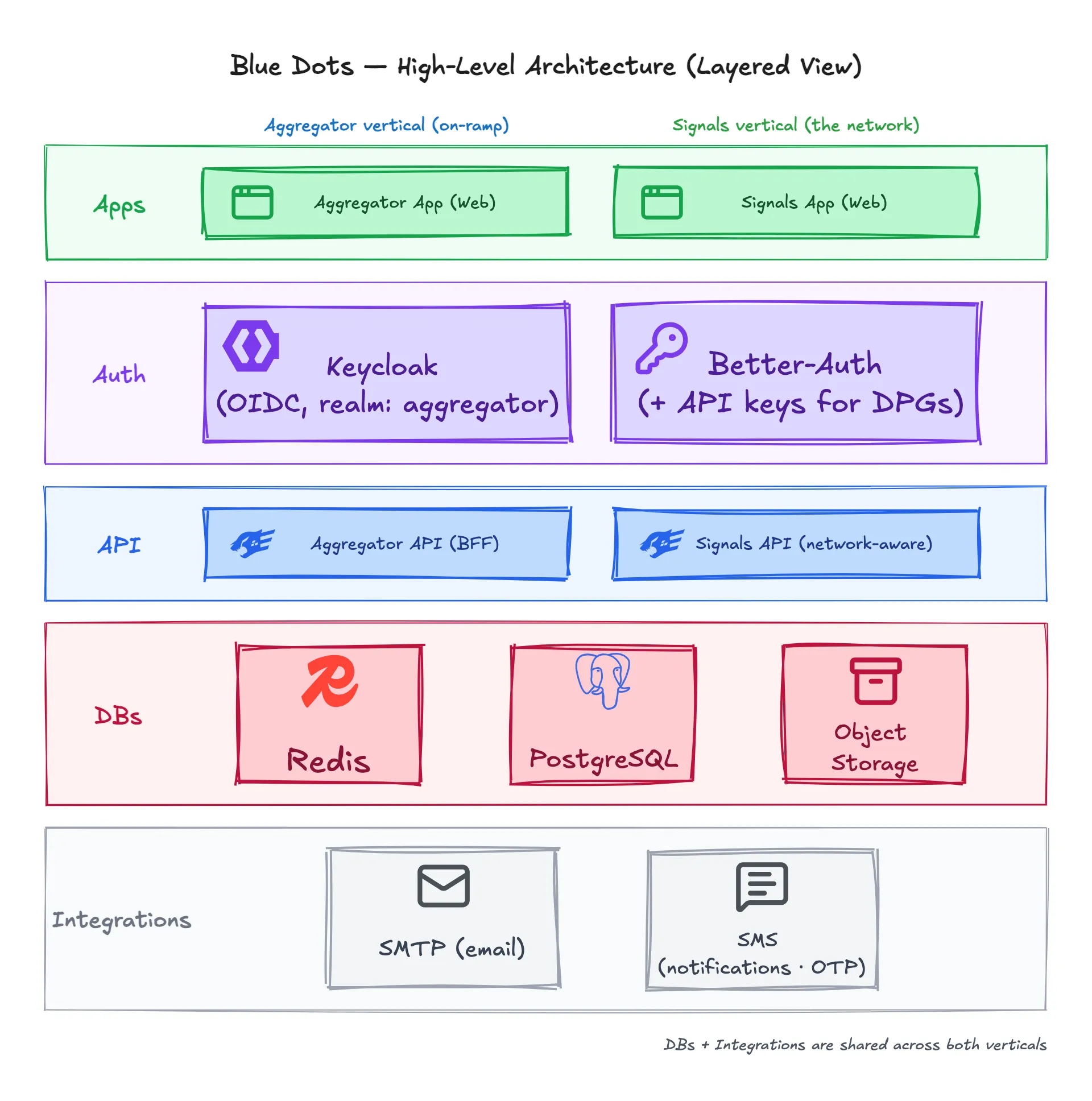

The Blue Dots layered architecture: Apps (Aggregator App, Signals App), Auth (Keycloak, Better-Auth), API (Aggregator API, Signals API), shared datastores (Redis, PostgreSQL, Object Storage) and integrations (SMTP, SMS)

Layer by layer

Section titled “Layer by layer”

Apps. Two web front-ends. The Aggregator App is the organisation-facing portal for onboarding and bulk upload. The Signals App is the schema-driven UI that renders forms and cards directly from network and item schemas.

Auth. The two verticals use different identity systems by design: the Aggregator stack uses Keycloak (OIDC, realm aggregator), while the Signals stack uses Better-Auth with an additional API-key path for integrating DPGs. See Identity & Auth.

API. The Aggregator API is a Fastify backend-for-frontend that owns the aggregator database and the registration/approval/bulk-upload flows. The Signals API is the network-aware Fastify backend that owns items, actions, events and cross-instance discovery.

Datastores. Shared across both verticals:

  • PostgreSQL — system of record (Drizzle ORM; item tables are partitioned in Signals).
  • Redis — sessions, caches and the background-job queue.
  • Object Storage (S3) — bulk-upload files and assets. S3 is a real cloud dependency, not part of the local Docker stack.

Integrations. SMTP for email (Mailpit locally) and SMS for notifications and OTP delivery.

Ingress & platform (cloud). In a cloud deployment, a shared common-services layer fronts both verticals with a Kong ingress controller and provisions cert-manager (TLS) and the shared Postgres + Redis. How this is provisioned and deployed is covered in Infrastructure & Deployment Architecture.

Two verticals, one network

Section titled “Two verticals, one network”

The Aggregator vertical is an on-ramp: it feeds participant signals into the Signals vertical, which is the network. In the MVP the Aggregator writes to Signals only through controlled bulk-create paths and otherwise reads from it.

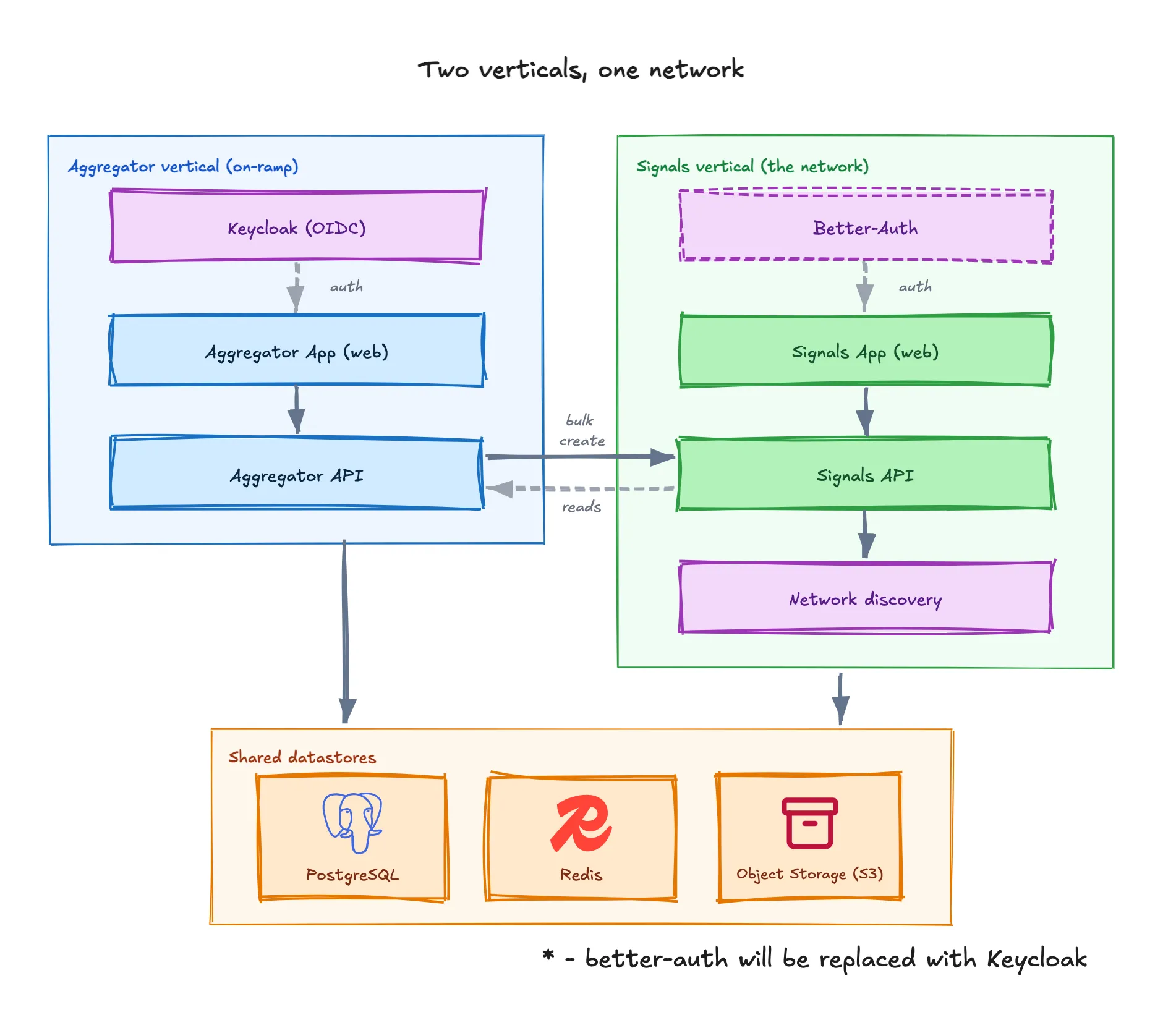

The Aggregator vertical (Keycloak → Aggregator App → Aggregator API) bulk-creates into and reads from the Signals vertical (Better-Auth → Signals App → Signals API → Network discovery); both verticals share PostgreSQL, Redis and Object Storage. Better-Auth will be replaced with Keycloak.

Dive deeper into each vertical in Signals DPG and Aggregator DPG.
