CI/CD & Build Pipeline

Blue Dots separates building application images from deploying them. The application repositories build and publish container images; the bluedots-automation repository pins specific image versions and deploys them to a cluster. Understanding this split is the key to the whole delivery pipeline.

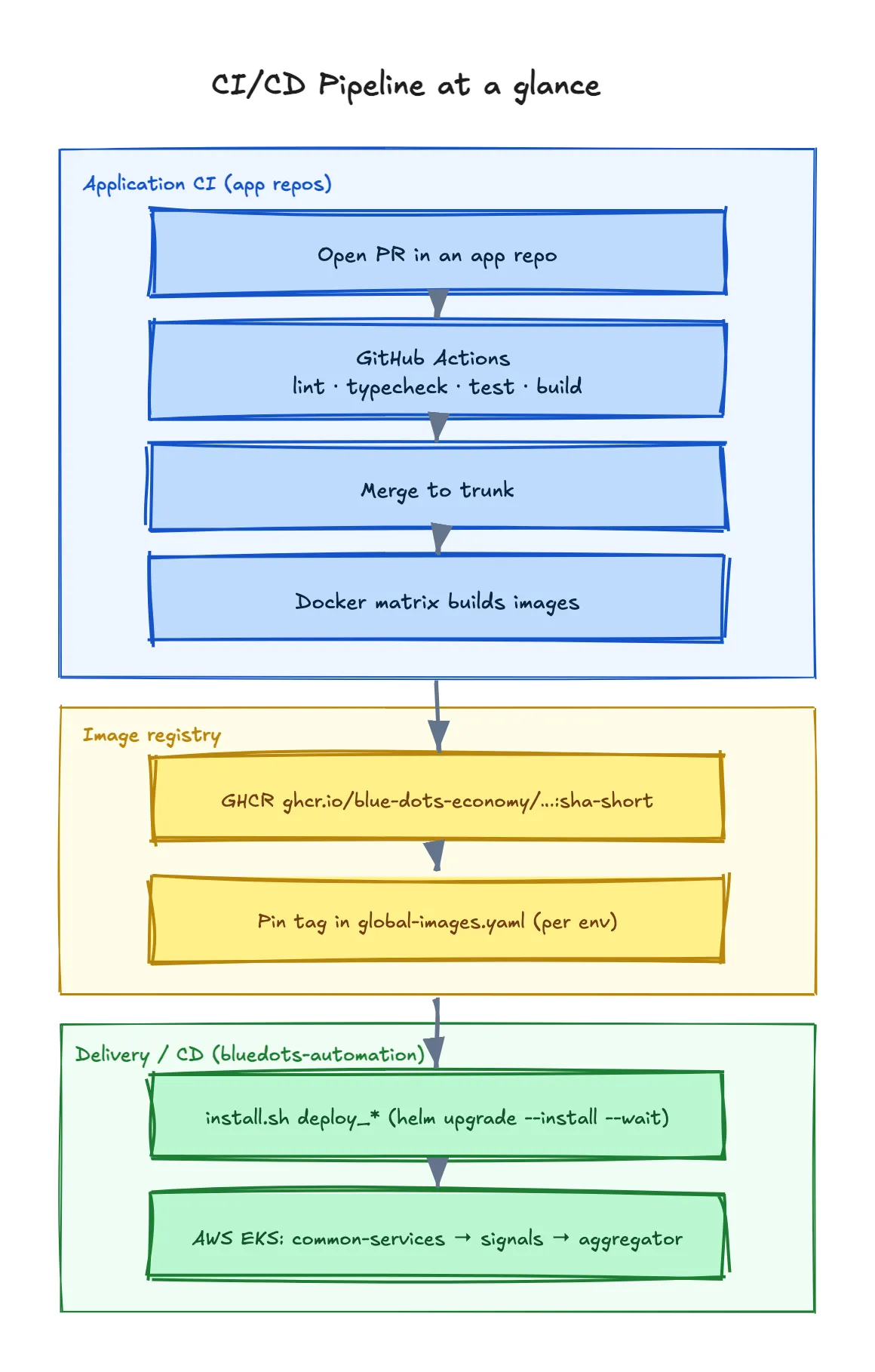

The pipeline at a glance

Application CI in app repos (open PR, GitHub Actions quality gates, merge to trunk, Docker matrix builds) feeds the image registry (GHCR sha-short tags, pinned per environment in global-images.yaml), which Delivery/CD in bluedots-automation deploys via install.sh with Helm to AWS EKS — common-services, then signals, then aggregator

The diagram shows two distinct “CI/CD” surfaces, bridged by the image registry (yellow):

Application CI (blue) — lives in each app repo. It validates and builds images.
Delivery / CD (green) — lives in bluedots-automation. It provisions infrastructure and deploys pinned images with Helm.

1. Application CI (build & publish)

Each application repo runs GitHub Actions on every PR and on pushes:

Quality gates — pnpm -w lint, typecheck, test, build, and (for aggregator-dpg) pnpm dep-check. Branch protection requires the CI check to pass before merge.
Image build & publish — a Docker matrix builds one image per deployable service and publishes to GitHub Container Registry (GHCR) under ghcr.io/blue-dots-economy/…. Images are tagged with the commit short SHA (sha-<short>); some services also cut per-app release tags (e.g. web-v*, api-v*, worker-v*).

Representative images (Signals + Aggregator):

Service	Image
Signals API	`ghcr.io/blue-dots-economy/signals-dpg/api`
Signals UI	`ghcr.io/blue-dots-economy/signals-dpg/ui`
Signals search	`ghcr.io/blue-dots-economy/signals-search`
Aggregator API	`ghcr.io/blue-dots-economy/aggregator-dpg/api`
Aggregator web	`ghcr.io/blue-dots-economy/aggregator-dpg/web`
Aggregator worker	`ghcr.io/blue-dots-economy/aggregator-dpg/worker`
Keycloak (custom)	`ghcr.io/blue-dots-economy/aggregator-dpg/keycloak-server`

Third-party platform images (Postgres, Redis, cert-manager, Kong) come from their own registries and are pinned the same way.

2. Pinning images for a deployment

The bluedots-automation repo does not build images — it selects them. Each environment has its own opentofu/aws/<env>/global-images.yaml, the single source of truth for image repository, tag and pullPolicy across every service:

# opentofu/aws/<env>/global-images.yaml  (excerpt)
api:
  image:
    repository: ghcr.io/blue-dots-economy/signals-dpg/api
    tag: "sha-46c05dd"          # ← promote by changing this
    pullPolicy: Always
web:
  image:
    repository: ghcr.io/blue-dots-economy/aggregator-dpg/web
    tag: "sha-15afbce"
    pullPolicy: Always

Because the file is per-environment, each deployment pins its own tags independently — dev can ride sha-… builds while a production environment stays on a known-good SHA. Promoting a release = updating a tag here and re-running the deploy. The keys map directly to subchart names in the umbrella Helm charts.

3. Delivery (CD) with `install.sh`

Deployment is driven by opentofu/aws/<env>/install.sh — one script for both cloud bootstrap and Helm deploy (there is no Makefile). Every deploy_* function runs helm upgrade --install … --wait, layering the chart’s own values.yaml, then the generated overlays, then global-images.yaml and global-resources.yaml.

cd opentofu/aws/<env>
export GHCR_PAT=ghp_xxxxxxxxxxxx          # read:packages — needed to pull private images

# static checks (install nothing)
bash install.sh lint        # helm lint all charts
bash install.sh dry_run     # helm --dry-run against the cluster

# full, ordered deploy
bash install.sh deploy_all_services

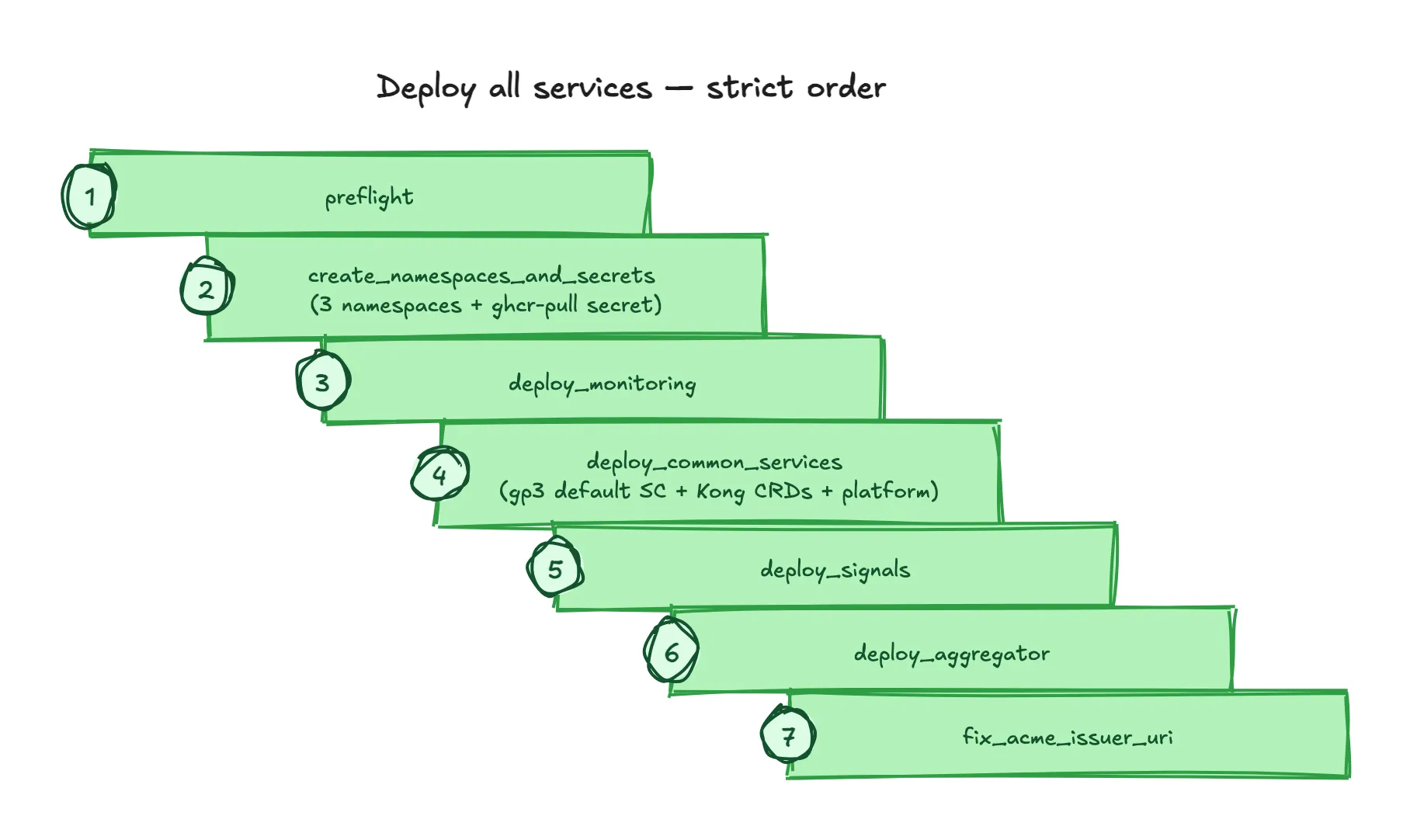

deploy_all_services chains, in strict order:

deploy_all_services runs in strict order: 1 preflight, 2 create_namespaces_and_secrets (3 namespaces + ghcr-pull secret), 3 deploy_monitoring, 4 deploy_common_services (gp3 default SC + Kong CRDs + platform), 5 deploy_signals, 6 deploy_aggregator, 7 fix_acme_issuer_uri

See the Deployment guide for the full step-by-step and validation, and Infrastructure & Deployment Architecture for what each layer is.

Scripted / non-interactive runs

For automation (e.g. a future pipeline), the OpenTofu apply functions honour AUTO_APPROVE=1 for non-interactive terragrunt apply, and GHCR_PAT can be supplied via the environment instead of an interactive prompt:

AUTO_APPROVE=1 GHCR_PAT=ghp_xxx bash install.sh apply_tf_eks
GHCR_PAT=ghp_xxx bash install.sh create_namespaces_and_secrets

4. Environments & branch strategy

Each live deployment has its own long-lived branch carrying that deployment’s config — network schema, image tags, public hostnames, and its own opentofu/aws/<env>/ directory. Work flows up a trunk chain before landing in a deployment branch.

Trunk (promotion chain): <feature-branch> → feature → develop → main.

main — canonical branch; cut new deployment branches from here.
develop — pre-release integration.
feature — collects in-progress work (often the newest trunk branch).

Per-deployment branches (examples):

Branch	Env	Notes
`blue-dots-dev`	dev
`orange-dots-dev`	dev
`orange-dot-prod`	prod
`purple-dots-prod`	prod

5. How a code change reaches a cluster

Open a PR in an app repo → CI runs lint/typecheck/test/build; reviewers approve.
Merge → the Docker matrix publishes ghcr.io/blue-dots-economy/<service>:sha-<short> to GHCR.
In bluedots-automation, on the target environment’s branch, update the relevant tag(s) in opentofu/aws/<env>/global-images.yaml.
Run bash install.sh deploy_<service> (or deploy_all_services) — Helm rolls out the new image with --wait.
Validate (helm list -A, pod health, ingress, TLS) — see the Deployment guide.

Rollback is the inverse: set the tag back to the previous known-good SHA and re-run the deploy.
