Infrastructure & Deployment Architecture

This page describes how a Blue Dots deployment is provisioned and run on a cluster. It is grounded in the bluedots-automation repository, which does two things: provisions AWS infrastructure with OpenTofu + Terragrunt, and deploys the application stack with Helm. A single install.sh per environment is the entrypoint for both.

Two layers

Section titled “Two layers”

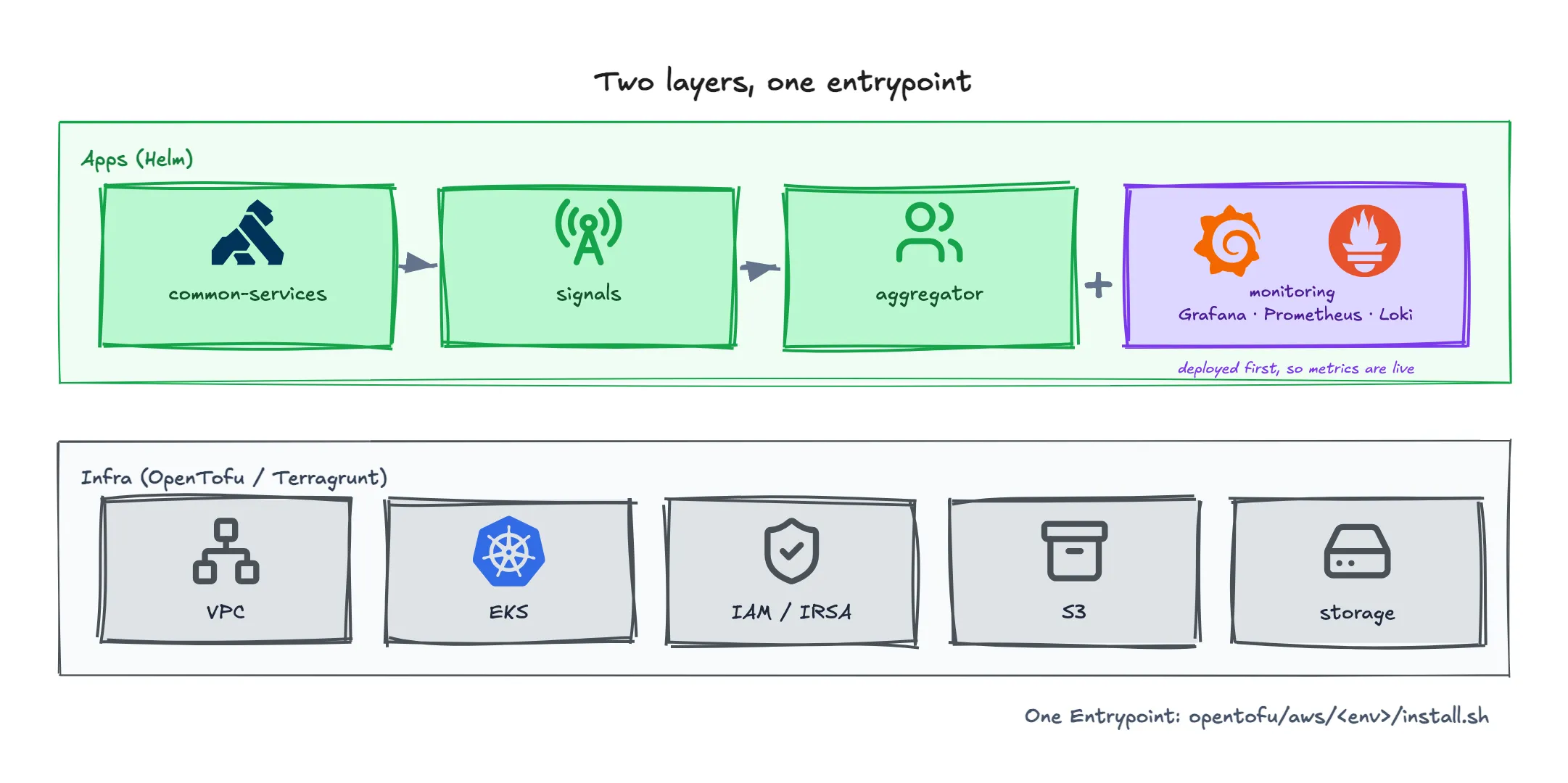

Two layers: Apps deployed with Helm (common-services with Kong, then signals, then aggregator, plus a monitoring stack of Grafana, Prometheus and Loki deployed first) on top of Infra provisioned with OpenTofu/Terragrunt (VPC, EKS, IAM/IRSA, S3, storage) — one entrypoint: opentofu/aws/<env>/install.sh

Infrastructure: OpenTofu + Terragrunt

Section titled “Infrastructure: OpenTofu + Terragrunt”

Infrastructure is defined as code under opentofu/aws/. Each environment is a directory (opentofu/aws/<env>/) created by copying template/. Terragrunt wraps OpenTofu to give per-module state and dependency wiring; modules apply in order:

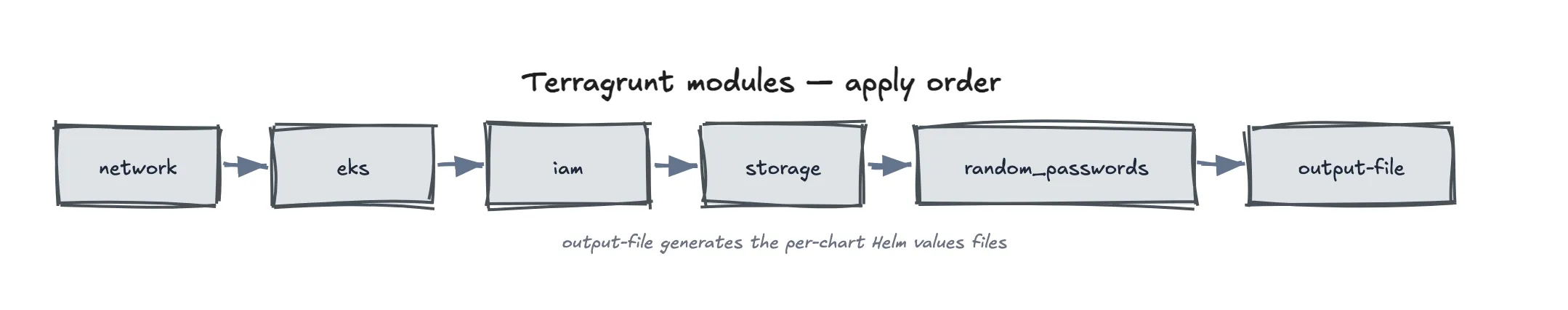

Terragrunt modules apply in order: network, eks, iam, storage, random_passwords, output-file — output-file generates the per-chart Helm values files

ModuleProvisions
networkVPC, subnets, routing
eksthe EKS cluster and node group
iamIAM roles incl. IRSA (service-account → role)
storagestorage resources; gp3 is made the default StorageClass
random_passwordsgenerated Postgres/Redis credentials
output-filegenerates the per-chart Helm values files (see below)

The only file you normally edit per environment is global-values.yaml — region, EKS sizing, public hostnames, network/domains, SMTP/SMS, and alert recipients. A tf.sh file carries the AWS region and the remote-state S3 bucket name and is sourced before any terragrunt run.

Per-module plan/apply functions exist (apply_tf_eks, etc.) and honour AUTO_APPROVE=1 for non-interactive runs.

The generated values-file model

Section titled “The generated values-file model”

Helm charts never hardcode secrets or hostnames. The output-file module reads outputs from the other modules and templates one values file per chart at the YAML root level, so Helm consumes each with a single -f — no slicing, no yq:

opentofu/aws/<env>/common-services-values.yaml
opentofu/aws/<env>/signals-values.yaml
opentofu/aws/<env>/aggregator-values.yaml

Shared secrets (e.g. the Redis password used by all charts) are templated into each file from the same random_passwords value, so they can never drift. Re-running terragrunt apply on the output-file unit regenerates and overwrites these files — so any manual edits must be applied after the final apply, or baked into the .tfpl templates.

Alongside these, three checked-in config files feed every deploy:

  • global-values.yaml — non-secret config (hosts, network, served domains).
  • global-images.yaml — per-environment image pins (see CI/CD & Build Pipeline).
  • helm/global-resources.yaml — replica counts, HPA, PDB and container resources, shared across environments.

Application stack: Helm umbrella charts

Section titled “Application stack: Helm umbrella charts”

Three umbrella charts (plus a monitoring chart) deploy in strict dependency order:

#Chart dirNamespaceDeploys
1helm/common-servicescommon-servicesKong ingress controller, cert-manager, letsencrypt-prod issuer, shared Postgres + Redis
2helm/signalssignalsSignals: api, ui, notification-service, match-score, search
3helm/aggregatoraggregatorAggregator: web (BFF), api, worker, keycloak
—helm/monitoringmonitoringPrometheus, Alertmanager, Loki, Alloy, Grafana (deployed first so metrics are live)

common-services must be healthy (Postgres + Redis Ready, PVCs bound) before signals and aggregator, which connect to the shared datastores at …svc.cluster.local. The aggregator’s Keycloak init job runs after Postgres is Ready, making it the slowest release.

Deployment topology

Section titled “Deployment topology”

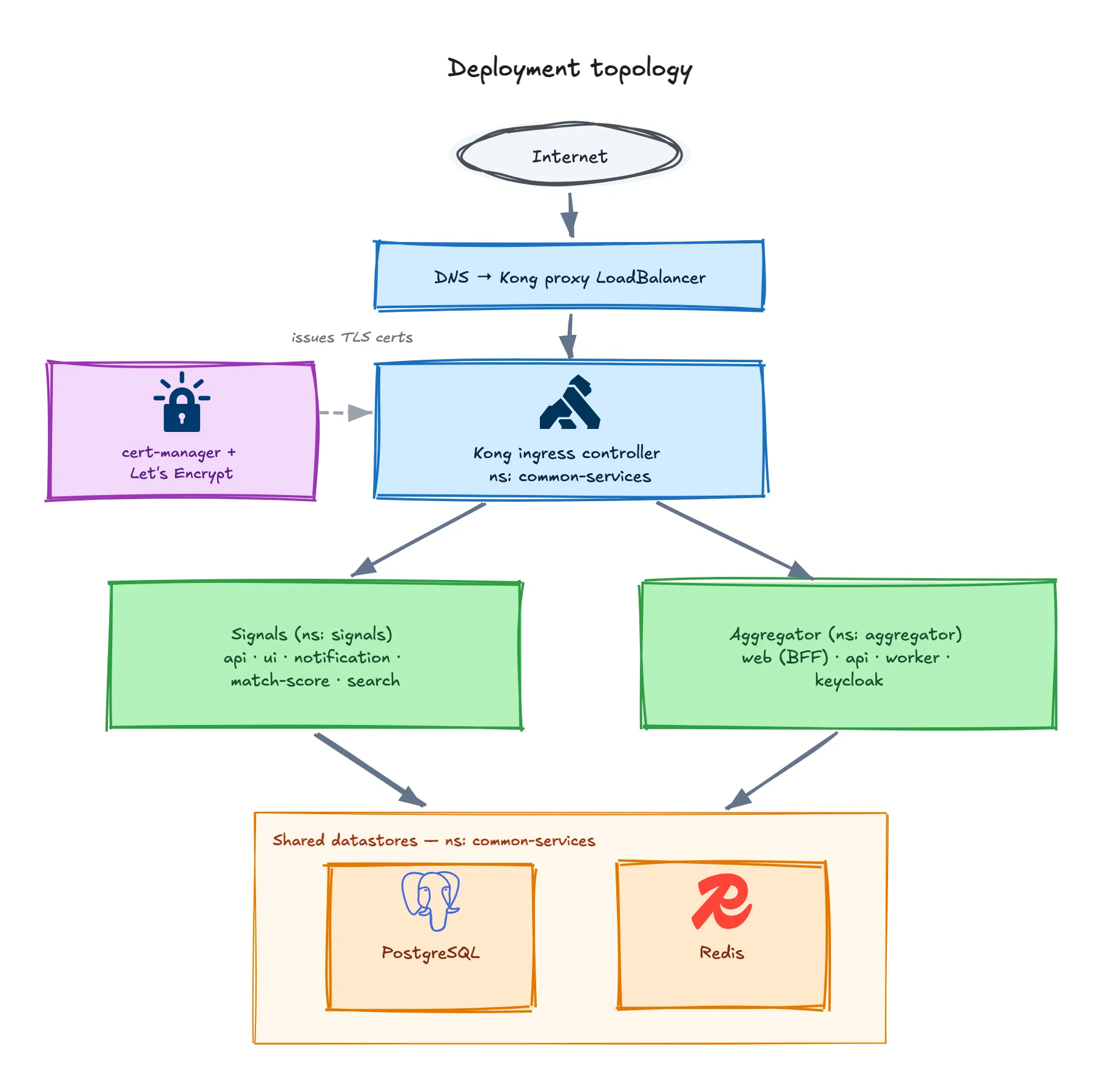

Traffic flows from the Internet via DNS to the Kong proxy LoadBalancer and the Kong ingress controller (ns: common-services), which routes to Signals (ns: signals — api, ui, notification, match-score, search) and Aggregator (ns: aggregator — web BFF, api, worker, keycloak); both connect to shared PostgreSQL and Redis in common-services, where cert-manager with Let's Encrypt issues TLS certificates for Kong

Ingress & rate limiting: Kong

Section titled “Ingress & rate limiting: Kong”

common-services runs the Kong ingress controller (DB-less) as the sole controller; kong is the cluster-default IngressClass and every app Ingress sets ingressClassName: kong. Rate limiting is enforced by KongClusterPlugin tiers (rl-auth, rl-api, rl-public) attached per route via the konghq.com/plugins annotation, with counters backed by the shared Redis (policy: redis) so limits hold across Kong replicas.

Kong’s CRDs ship inside the vendored subchart, but Helm only installs subchart CRDs on first install and never updates them on upgrade — so deploy_common_services applies the CRDs explicitly (kubectl apply --server-side) before every Helm run.

TLS: cert-manager + Let’s Encrypt

Section titled “TLS: cert-manager + Let’s Encrypt”

common-services installs cert-manager and a letsencrypt-prod ClusterIssuer. Certificates are issued automatically via ACME once DNS for the public hosts points at the Kong proxy LoadBalancer. (A known cert-manager v1.20.2 ACME bug is worked around by a fix_acme_issuer_uri step in install.sh.)

Identity at runtime

Section titled “Identity at runtime”

Keycloak (Aggregator) and Better-Auth + API keys (Signals) are covered in Identity & Auth. One deployment-time detail: the aggregator’s global.signalstack.actingOrgId must be set after Signals is deployed (it is read from the seeded organization table via get-signalstack-org-id.sh), or aggregator login fails with SIGNALSTACK_ORG_NOT_REGISTERED.
